Tankless Series

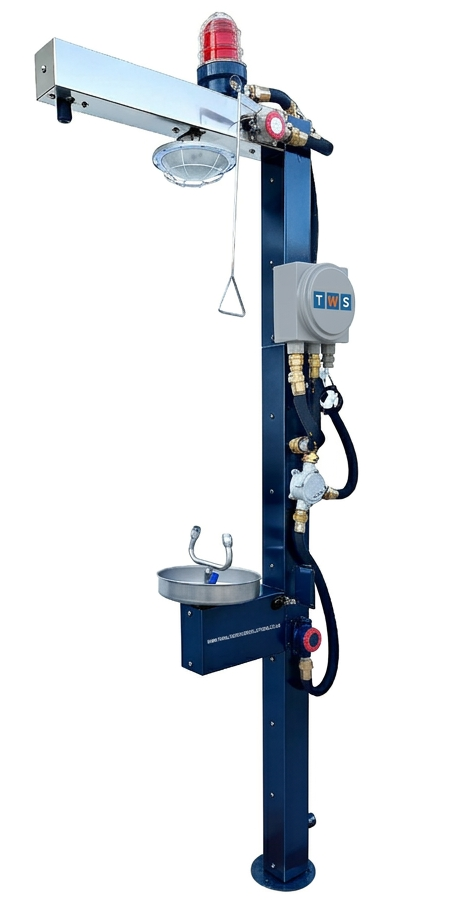

Explosion-Proof Electric Trace Heated Emergency Drench Shower and Eyewash Unit
Reliable Emergency Safety Equipment for Hazardous and Industrial Environments
The Explosion-Proof Electric Trace Heated Emergency Drench Shower and Eyewash Unit is designed for hazardous and demanding industrial environments where reliable emergency washing facilities and temperature protection are required.
Built with a 304 stainless steel main body, the unit features a dual temperature control system combining self-limiting electric heat tracing and temperature control. It is available with or without an eyewash facility and includes a stainless steel inlet filter.
Key Features
- Explosion-proof electric trace heating
- Dual temperature control system
- 304 stainless steel main body
- Emergency drench shower with optional eyewash
- Power, operation and fault indicator lights
- Leakage protection system
- Alarm and DCS remote signal transmission
- Integrated lighting system
- IP66 protection rating
- Standard PP shower nozzle, with stainless steel option available
Technical Specifications
- Eyewash Flow Rate: 11 LPM
- Drench Shower Flow Rate: 76 LPM
- Power Supply: AC 220V, 50Hz
- Power: 200W
- Explosion-Proof Rating: Ex db eb IIC T6 Gb, Ex tb IIIC T80 Db
- Protection Level: IP66
- Main Body Material: Stainless Steel 304
Customisation Options
The unit can be customised with options including different colours and materials, external powder coating, dimensions, thermostat configurations, level gauges, inlet booster pumps, explosion-proof pumps with automatic protection, water inlet and outlet configurations, audible and visual alarms, feet barriers and heating bars.
Contact Tankless Water Solutions for further product information and customised requirements: [email protected]
EXPLOSION-PROOF HEATED DESIGN
EMERGENCY SAFETY PROTECTION
304 STAINLESS STEEL CONSTRUCTION
FULLY CUSTOMISABLE SOLUTION
IP66 ENVIRONMENTAL PROTECTION
DUAL TEMPERATURE CONTROL SYSTEM
INTEGRATED ALARM & LIGHTING SYSTEM
HX/TX Overview
Technical Specifications
| Specification | Details |
| Product Type | Explosion-Proof Electric Trace Heated Emergency Drench Shower and Eyewash Unit |
| Eyewash Flow Rate | 11 litres per minute |
| Drench Shower Flow Rate | 76 litres per minute |
| Power Supply | AC 220V, 50Hz |
| Power | 200W |
| Main Body Material | Stainless Steel 304 |
| Explosion-Proof Rating | Ex db eb IIC T6 Gb, Ex tb IIIC T80 Db |
| Protection Rating | IP66 |
| Standard Shower Nozzle | PP |
| Optional Shower Nozzle | Stainless steel |
| Inlet Filter | Stainless steel |
| Electrical Protection | Leakage protection system |
| Status Indication | Power, operation and fault indicator lights |
| Remote Monitoring | DCS remote signal transmission system |
| Lighting | Equipped with lighting system |
The product specifications above are based on the supplied product information.
Why Choose This Emergency Drench Shower and Eyewash Unit?
Emergency safety equipment needs to be reliable when it is required. This unit combines emergency washing facilities with electric trace heating, temperature control, explosion-proof protection, leakage protection, alarm capability and remote signal transmission.
Its 304 stainless steel construction and IP66 protection rating make it a robust option for demanding environments, while the available customisation options provide greater flexibility for specialist projects.
Whether your requirement is for an industrial plant, hazardous area, offshore installation or another demanding environment, Tankless Water Solutions can help you explore the available configuration options and identify a suitable solution for your application.
Speak to Our Technical Team
At Tankless Water Solutions Ltd, we supply specialist heating and water solutions for commercial, industrial, marine and demanding applications throughout the UK. Our business is supported by technical expertise developed over more than 20 years in the heating and renewable energy sectors.
If you require further information about the Explosion-Proof Electric Trace Heated Emergency Drench Shower and Eyewash Unit, including available customisation options, technical specifications or application suitability, please contact our team to discuss your requirements.
For specialist heating and industrial water solutions, Tankless Water Solutions Ltd is ready to provide professional technical support and product guidance.
